Special touch screen control and vibration table for electronics and hardware products: vertical + horizontal electromagnetic shaking table (X, Y+Z axis), with constant acceleration and constant amplitude, and continuous comprehensive frequency sweep.

The vibration table has the following functions than the ordinary vibrating table: the A acceleration is adjustable. B's powerful logarithmic sweep frequency function (the fundamental theoretical basis for the vibration test of electronic appliances. Otherwise, the vibration detection of electronic products is meaningless. Only logarithmic sweep frequency can search for the fragile damage frequency of electronic products, that is, the resonance point of electronic products. Ordinary frequency sweep can not reach the purpose of real vibration detection. C free warranty for 1 years, excellent quality. There are 3 unconditional changes in a year.

The touch screen monitors the acceleration, amplitude modulation, the sweep frequency can determine the acceleration and the amplitude, and the vibration testing machine is integrated.

Break the tradition: manually convert x, y, z direction or replace the table. New breakthrough in the field of vibration

A, full automatic six degree space vibration: can automatically switch the direction of vibration (x, y, Z three-dimensional direction), can be given time. Automatic switching vibratory side without manual switching

B, the vibration direction of the fully automatic six degree space machine vibrating table (about the same desk working on the same front and back)

C, three axis simultaneous action, can be two axis simultaneous action, (two / three) axis continuous action, random vibration, sine wave (half wave / full wave).

D, the vertical level (x, y +, z). A vibration platform without moving the test sample

E, main functions: detection of false welding of LED lamps, loosening of screws, loosening of structure, resonance point search

F. product name, batch. Compiling and saving

G: frequency modulation, amplitude modulation and acceleration. The constant amplitude sweep frequency and constant acceleration sweep frequency can be completed

1., the functions are complete and powerful: fixed frequency, sweep frequency, logarithmic sweep frequency, multistage random, sine wave and half sine wave, programmable, frequency doubling, maximum acceleration, amplitude modulation, time control, fixed acceleration and fixed amplitude.

2. shaker size: L*H*W570 x 410 x 570

3. maximum test load: M series 100KG

4. FM function: any frequency within the frequency range, the maximum amplitude "15MM" (5-2000HZ)

5. sweep frequency: constant acceleration scavenging, constant amplitude sweep. Executable: multiple continuous sweeping frequency sweeping modes with 3 or 2 or 1 cross frequencies

Integrated frequency sweep mode:

A. starting frequency constant amplitude or constant acceleration, the crossover frequency 1---- constant amplitude or constant acceleration, the crossover frequency 2--- constant amplitude or constant acceleration at the crossover frequency 3 amplitude or constant acceleration - stop frequency

B. sweep process: continuous, automatic change sweep mode (constant amplitude or constant acceleration sweep frequency)

6. programmable function: 15 segments can be set at random (frequency / time) and can be circulated (irregular vibration).

7. frequency doubling function: the 15 segment multiplier increases (1) low to high frequency (2) high to low frequency (3) low to high to low / recyclable

8. logarithmic functions: (1) down to up frequency (2), down to down frequency (3), up and down to down frequency - 3 mode logarithmic / cyclable accelerable sweep frequency, and amplitude sweep frequency can be fixed.

9. vibrator power: 4.5KW

10. amplitude: 0-15mm (adjustable range P-P) unit mm

11. maximum acceleration: 30G

12. time control: any time can be set (in seconds)

Vibration direction: vertical + level, vibration time in the direction of vibration: can be predetermined, automatic conversion

13. source voltage: 220 + 20%V

14. maximum current: 22A

15. precision: frequency can be displayed 0.01Hz, precision 0.1Hz

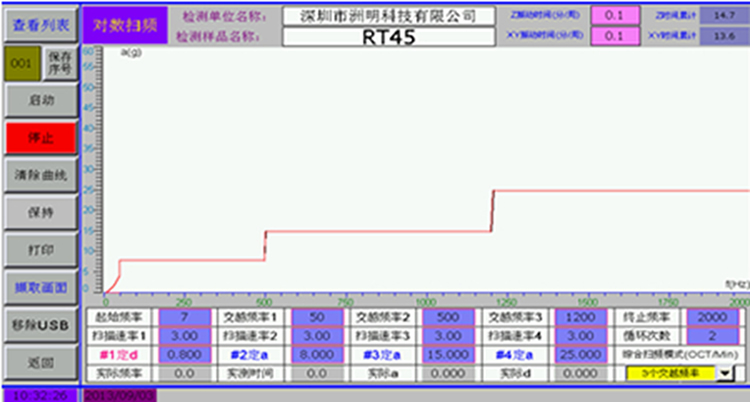

16. the touch screen operation is simple and clear, the vibration parameters are displayed in real time: vibration waveform / acceleration, amplitude, frequency, time, cycle times, scanning rate OCT/Min

17. acceleration, amplitude, frequency, scanning rate OCT/Min. time, cycle times can be adjusted and visually displayed. Fixed acceleration can also set amplitude. 3 frequency sweep modes can be executed.

18. starting, stopping, vibration direction and time determination, all touch screen operation

There are 25 10mm threaded holes on the 19. table and 4 sides of the four sides each with 4 7cm hooks.

20., it can print test reports: compile LED products, and list LED products. Vibration waveform, acceleration, amplitude, frequency, time, cycle number, scanning rate OCT/Min.--, and U disk can be used to get vibration test report, send mail.

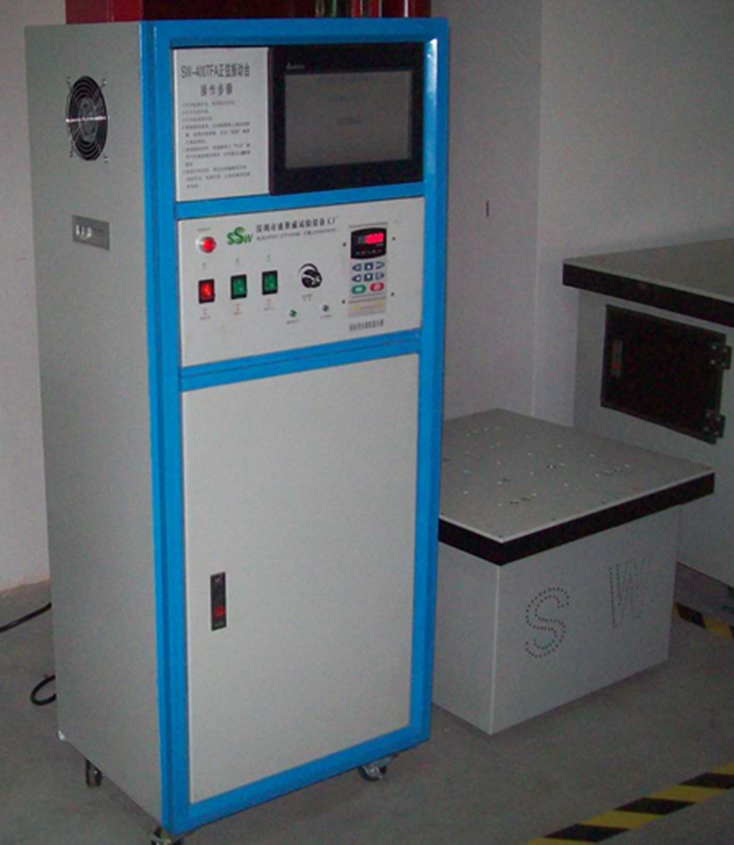

21. contains 1 vibrator. The power amplifier cabinet is 1.

22. mainly used in the vibration test of LED lamps and lanterns, battery products, pre development, false welding, screw loosening and loose structure.

Characteristic：

The beautiful appearance design

The mobile convenience, without a solid foundation.

I am easy to program and amplitude prediction.

The vibration parameters of real-time display (computer monitor).

The Chinese operation interface, convenient operation.

The stepless adjusting amplitude, to meet the requirements of more tests.

The closed loop control method, high precision

The surface vibration uniformity is good.

The non contact mechanical vibration, low noise.

The X, y, Z three axis vibration: the same table, without moving the test sample

The vibration direction of the automatic transformation.

But with misoperation automatic reminding function

We have over voltage, over current, over load, displacement, low voltage, overheating automatic protection function
