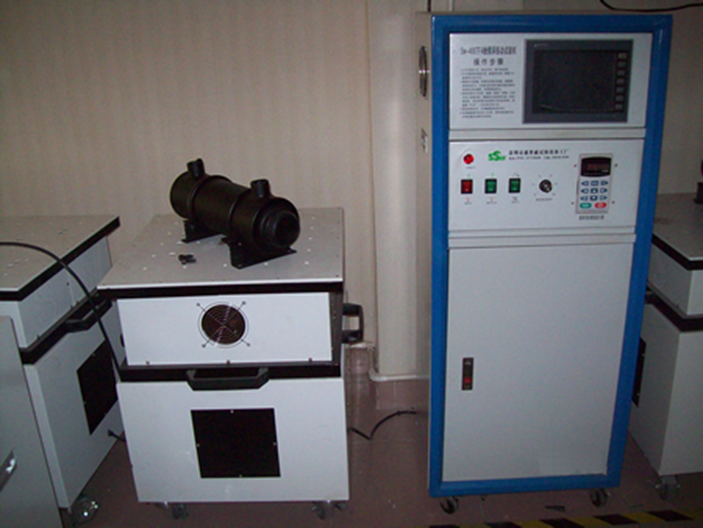

Vertical + horizontal "one table" (X, Y, Z axis) direction touch screen screen control FM amplitude modulation frequency vibration test machine《JDSS-400TFA》
Product features:
The vibration testing machine is mainly used for production line or laboratory: power supply, LED, display products, mobile phone electronic products false welding, circuit board, card reader, digital products, vehicle electric products false welding vibration detection. Electromagnetic vibration test series is widely used in national defense, aviation, aerospace, communications, electronics, automotive, household electrical appliances and other industries. The type of equipment used to detect early fault, simulating the actual working condition assessment and structural strength test, wide range of products, wide range of application, test results are obvious and reliable.

Product features:
◆ Precision design and manufacture, small volume, super quiet operation. High tech innovative design thinking concept, unique structure: 8 central axis, different load automatic adjustment center. 485 communication interface

◆ The machine base adopts steel with heavy damping rubber pad, easy installation, stable operation, no need to install the anchor bolts

◆ The imported touch screen control instrument: digital control, operation interface in English. Intuitionistic, real-time display and manual adjustment: frequency, amplitude, acceleration, time, cycle times, frequency sweep rate (OCT/MIN). It can display the vibration wave. A printer can be used to print various vibration parameters and vibration test reports (including vibration curves and waveform diagrams).

◆ The frequency sweep (linear sweep and logarithmic sweep), fixed frequency, multi frequency, broadband random order, random, programmable functions. Time control, adjustable amplitude, sine wave and half sine wave test, meet the requirements of different industries and more vibration test standard

◆ Design the humanized control idea, smooth lines, so that the quality of your products are reliable and powerful, technology has reached the international advanced level, the first at home and abroad first

◆ The vertical + horizontal vibration test table: a table, a table without moving the test sample. Automatic switching (scheduled time) x, y, Z vibration direction. The three axis can act at the same time. It can act at the same time at the same time as the two axis, and the (two / three) axis can be operated continuously. Increasing the interference circuit to solve the interference of the strong electromagnetic field to the control circuit

Technical parameter:

Product model: JDSS-400TFA

Maximum test load (Kg): 100 (can be customized according to user requirements)

Frequency modulation range (Hz): 1-400HZ (1-600HZ) / (1-2000HZ) / (1-5000HZ)

Sweep range (Hz): 1-400HZ (1-600HZ) / (1-2000HZ) / (1-5000HZ)

Amplitude of no-load displacement (mm): 0-5 (0-8mm)

Vibration direction: vertical + level (x, y, z)

Set time range: 1S-99.99H

Working table size (mm) (L/W/H): 570X570X50 (customized according to user requirements)

Table size (mm) (L/W/H): 570X410X570

Control box size (mm) (L/W/H): 500X380X1050

Power supply voltage (V/Hz): 220/50 + 2%

Power consumption (KVA): 2.2

Operation mode: touch screen control, Chinese interface, automatic conversion of vibration direction
