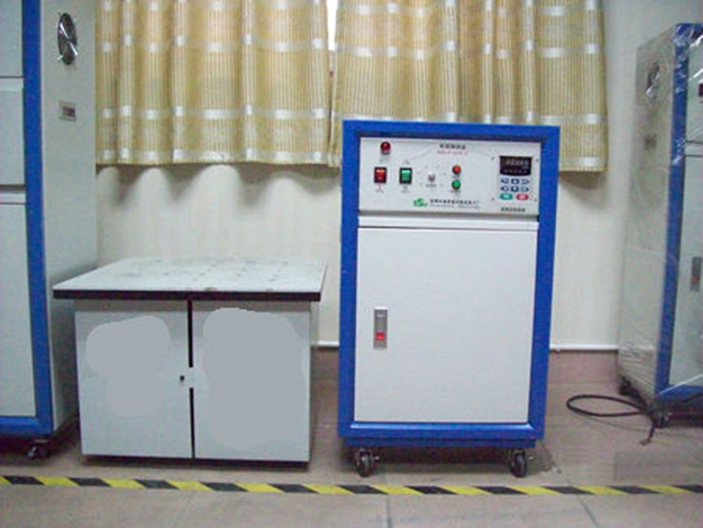

Vertical + horizontal "one table" (X, Y, Z) direction FM amplitude modulation, sweep frequency vibration testing machine<JDSS-TFA>
Product use:
Local oscillator is mainly used in production line or laboratory: power, LED, display products, mobile phone electronic products false welding, circuit board, card reader, digital products, vehicle electric products false welding vibration detection. Electromagnetic vibration test series is widely used in national defense, aviation, aerospace, communications, electronics, automotive, household electrical appliances and other industries. The type of equipment used to detect early fault, simulating the actual working condition assessment and structural strength test, wide range of products, wide range of application, test results are obvious and reliable.

Product features:
◆ Precision design and manufacture, small volume, super quiet work.

◆ The machine base adopts steel with heavy damping rubber pad, easy installation, stable operation, no need to install the anchor bolts

◆ The imported frequency control instrument, frequency and display of digital control, PID adjustment function, make the equipment more stable and reliable

◆ The frequency sweep (linear sweep and logarithmic sweep), fixed frequency, multi frequency, random order, programmable function. Time control, adjustable amplitude, sine wave and half sine wave test to meet the requirements of different industries and more vibration test standard

◆ Design the humanized control idea, smooth lines, so that the quality of your products are reliable and powerful, technology has reached the international advanced level, the first at home and abroad first

◆ The vertical + horizontal vibration test table: a table, a table without moving the test sample. Increasing the interference circuit to solve the interference of the strong electromagnetic field to the control circuit

Technical parameter:

Product model: JDSS-TFA

Maximum test load (Kg):100 (customized according to user requirements)

Frequency modulation range (Hz):1-400HZ (1-600HZ) / (1-2000HZ) / (1-5000HZ)

Sweep range (Hz):1-400HZ (1-600HZ) / (1-2000HZ) / (1-5000HZ)

Unloaded displacement amplitude (mm):0-5

Vibration direction: vertical + level (x, y, z)

Set time range: 1S-99.99H

Working table size (mm) (L/W/H):570X410X570

Table size (mm) (L/W/H):500X380X1050

Power supply voltage (V/Hz):220/50 + 2%

Consumption of power (KVA):2.2

Visual display: frequency, vibration time, amplitude
