Product use:
The vibrator is mainly used for the production line: power supply, LED display products, electronic products, mobile phone false welding, circuit board, card reader, digital products, automotive electrical products false welding vibration detection of electromagnetic vibration test series are widely used in national defense, aviation, aerospace, communications, electronics, automobiles, household appliances and other industries. The type of equipment used to detect early fault, simulating the actual working condition assessment and structural strength test, wide range of products, wide range of application, test results are obvious and reliable.
Product features:
◆ High tech innovative design thinking concept, unique structure: 8 center axis, different load automatic adjustment center.

◆ The precise design and manufacture, light weight, ultra quiet work

◆ The installation is simple, easy to operate. No need for foundation

◆ The time control, fixed frequency, amplitude adjustable sine wave and half sine wave can be applied more test standard

◆ The economic price. Vertical + horizontal vibration test table: a table, a table without moving the test sample. Increasing the interference circuit to solve the interference of the strong electromagnetic field to the control circuit

Technical parameter:

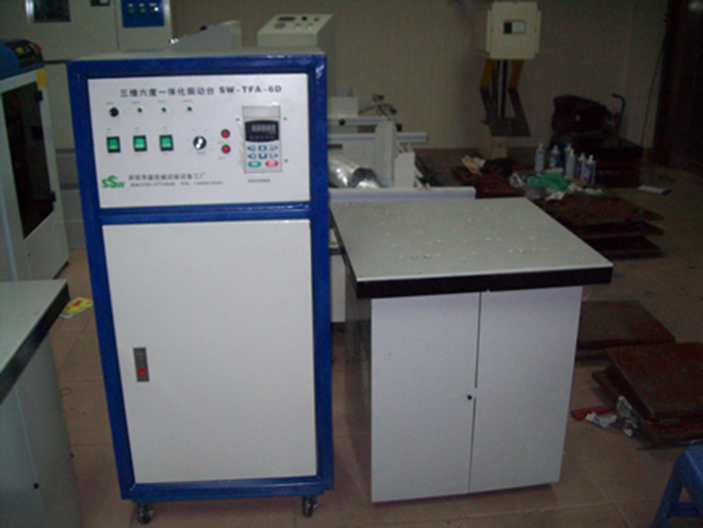

Product model: JDSS-TLA-6D-570, JDSS-TLA-6D-1000

Maximum test load (Kg):100 (can be customized according to user requirements), 300 (can be customized according to user requirements)

FM range (Hz):50, 50

Sweep range (Hz): No, no

The amplitude of the unloaded displacement (mm):0-5, 0-5

Vibration direction: X, Y, Z three dimensional six degrees, X, Y, Z X, Y, Z three dimensional six degrees

Set time range (m):1-999, 1-999

Maximum acceleration (g):20 (can be customized according to user requirements), 20 (can be customized according to user requirements)

Table size (mm) (L/W/H (:570X626X570) can be customized according to user requirements (1000X626X1000), can be customized according to user requirements)

The power supply voltage (V/Hz):220/50 + 2%, 220/50 + 2%

Consumption of power (KVA):0.75, 4.5

Mode of operation: frequency control instrument
