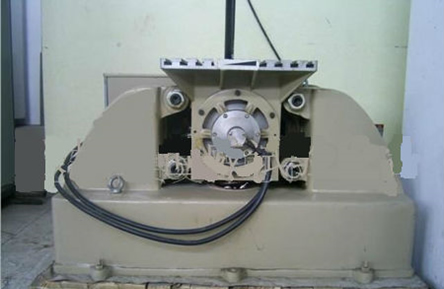

Vertical + horizontal mechanical vibrator JDSS-25g
- Details
Model JDSS-25g JDSS-70g JDSS-100g JDSS-150g JDSS-250g JDSS-500g JDSS-1000g Maximum load(kg) 25 70 100 150 250 500 1000 Frequency range(Hz) 10×80 5×60 5×60 5×60 5×80 5×80 5×80 MAX displacement(mm) 10 10 10 10 5 5 5 MAX acceleration m／s2 100 100 100 100 100 100 100 Platform size(cm) 40×40 80×70 80×70 70×80 100×120 100×120 140×140 Vibrational form, vertical, horizontal Power consumption(KVA) 1.6 5 5 5 8 8 12 Shape size L(cm) 110 160 178 178 160 160 180 H(cm) 83 110 110 110 120 120 120 W(cm) 52 52 56 56 240 240 280 Body weight(kg) 500 1100 1100 1200 2800 2800 3600 Main motor power(kw) 1．5 4 4 4 7．5 7．5 11 Power Supply AC220V≤土10％ AC 380V≤土10％ Factory production: vertical + horizontal mechanical vibrator JDSS-25g/0755-277165547
Product features: vibration direction: vertical + level
1. has the function of zero signal and flying car protection.
2. photoelectric speed measuring feedback to improve the control precision.
3. continuous stepless change of vibration frequency.
4. stepless adjustment of vibration mechanism to ensure horizontal accuracy.
5. can automatically adjust the amplitude of the amplitude in the work.
2, JDSS-400GF mechanical vertical vibrating table
