< for vibration during multi function vibration ><JDSS vibration table vibration table > > production of power battery

JDSS-400GF power cell special vibrating table / vibrator / high frequency vibrator

Medical equipment, power battery, electronic, electrical, electrical and photoelectric sound box product special vibrating table: vertical mechanical vibrator

This shaking table has more functions than the ordinary vibrating table: the speed of A is adjustable. B is the fundamental theoretical basis for the vibration test of the powerful logarithmic frequency sweep function (electronic appliance product). Otherwise, the vibration detection of electronic and electronic products is meaningless. Only logarithmic sweep frequency can search for the damage frequency of electronic optoelectronic products, that is, the resonance point of electronic optoelectronic appliances. Ordinary frequency sweep can not reach the purpose of real vibration detection. C free warranty for 1 years, excellent quality. There are 3 unconditional changes in a year. The vibration function of the D model is more true.

The maximum test load (kg):600 of the shaking table; (100Kg---10 tonnes can be made)

Maximum exciter force of the shaking table: 80KN

Vibration range FM range (HZ): 5--200;

Vibratory frequency range (HZ): 5-200;

Maximum acceleration of shaking table: 40g

Shaking table amplitude range (mm): 0-5 (the maximum amplitude of low frequency rejection can reach 10mm)

Vibration direction of the shaking table (Z): vertical vibration;

Working table size of vibrating table mm(L/W/H) ： 1500 × 1150 ；1500X1500   800X900

1200X800     1000X1000  3000X2000
Vibration table size mm(L/W/H) ：1500 × 740 × 1150；1500X740X1500  800X740X900
1200X740X800  1000X740X1000   3000X740X2000
Power supply voltage of shaking table（ V/HZ ）： 380/220± 20% ；
Vibration table consumption power（ KVA ）：4.9；
Mechanical vibrator function: FM, amplitude modulation, fixed frequency, sweep frequency, multi order test, programmable
Vibration table characteristics：
1,Suitable for various specifications of power battery, lithium battery, LED display. 2 or more products can be detected at one time

2. frequency, the amplitude distortion is small..

3. low frequency, high frequency amplitude uniform.10HZ---100HZ can also reach the amplitude of 5mm. It overcomes the electromagnetic vibrator: when the frequency is high, the amplitude is small (feeling no vibration).

4. adopt a unique high-tech gas suspension theory - close to zero damping. Technology ensures high amplitude at high frequencies.

※ The beautiful appearance design

※ The mobile convenience, without a solid foundation. Do not have to install the foot screw

※ I am easy to program and amplitude prediction. Four point synchronous excitation, good vibration uniformity

※ The vibration parameters of real-time display (touch screen monitor).

※ The Chinese operation interface, convenient operation.

※ The stepless adjusting amplitude, to meet the requirements of more tests.

※ The closed loop control method, high precision

※ The surface vibration uniformity is good.

※ The non contact mechanical vibration, low noise.

※ We have over voltage, over current, over load, displacement, low voltage automatic protection, automatic protection function of overheating

Touch screen control system: can display vibration curve, vibration wave, acceleration, amplitude, frequency, time, cycle times. Scanning rate OCT/Min

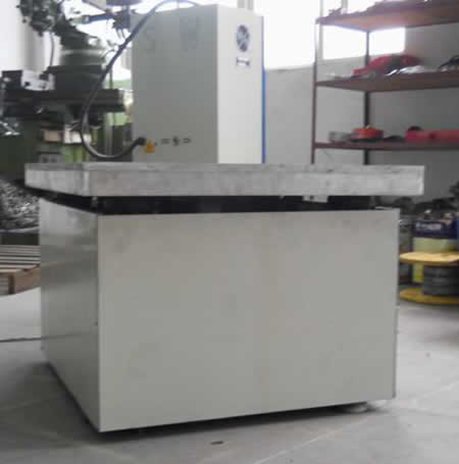

JDSS-400GF dynamic battery vibration testing machine

Satisfy GB/T2900.11-1988 ID IEC60086-4：2000、SJ/T11169-1998 or UL1642-2007、SJ/T11170-1998 or UL2054、MH/T1020-2007 or UN38.3、GB/T18287-2000、YD/T1268.1-2003、QB/T2502-2000、IEC62281-2004、QC/T 743-744 Standard requirements for test
