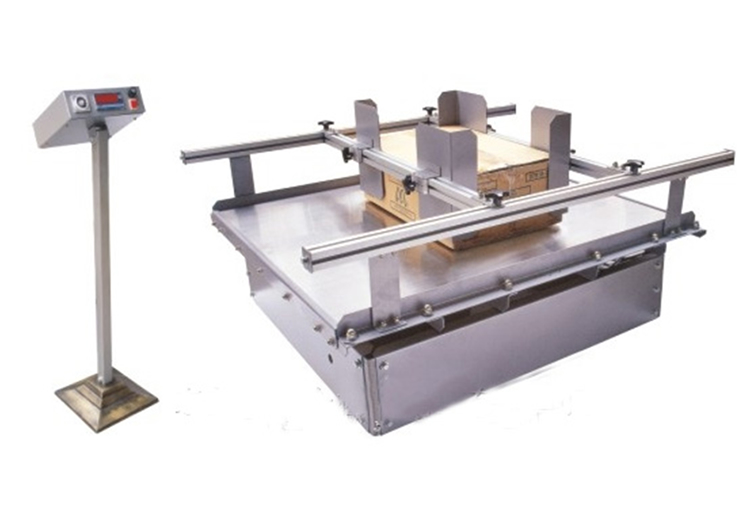

Use of simulated transport vibrator：
The simulated transport vibrator is suitable for simulating transportation test of toys, electronics, furniture, gifts, ceramics, packaging and other products, which is in line with the US and European transport standards.
EN ANSI, UL, ASTM, ISTA international transport standards
Characteristics of simulated transport vibrator：
* The price is low, and the price is only 10% of the same products of the United States.
* digital instrument display vibration frequency
* synchronous squelch belt transmission, low noise
* it is easy to operate and safe to use the guideway type.
* The chassis base is equipped with heavy channel steel with damping rubber pad, easy to install, smooth running, no need to install the foot screw
* DC motor speed control, smooth running, strong load capacity
* rotating vibration (commonly known as horse racing), in line with European and American transport standards
Technical parameter：
Product model JDSS-FC-100（Standard） JDSS-FC-100 Vibration frequency 100~300rpm 100~300rpm Amplitude 25.4mm(1 inch) 25.4mm(1 inch) Ttimer 0~99H99m 0~99H99m Display frequency
accuracy0.1rpm 0.1rpm Vibration mode Rotary (horse racing) Rotary (horse racing) Maximum payload 100kg 100kg Effective working
table size1000x1000mm Agreed upon request Electric motor power 1HP（0.75kw） Size 1100x1300x650mm Simulated transport
vibration table weightAbout 300kg Analog transport
vibrator power supplyAC220V 10A
