Because vertical electromagnetic shaking table can not test heavy and large size and high position of the center of gravity, resulting in large sideslip, roll and overturning moment, such specimens usually produce excessive stress on the suspension system of the shaking table, which will damage the system. Therefore, more and more vibration tests are required to install slider system, so that we can achieve horizontal test on the original system for larger and heavier test load.

The horizontal slide with functional structure can easily and no fault test large and heavy specimens. By shaking the shaking table to the horizontal direction, we can break the limitation of conventional vibration test. The hard structure and air damping platform oriented system, increase the quality of the reaction system, thus the vibration effects on surrounding environment interference is minimized. The linear steering system ensures the high strength of the slide, and the cross vibration caused by the asymmetry of the specimen is minimized. The hydrostatic pressure system makes the vibration test of those large and heavy specimens possible. Such specimens often produce large sideslip, roll and overturning moment on the slide table due to the location of high center of gravity.

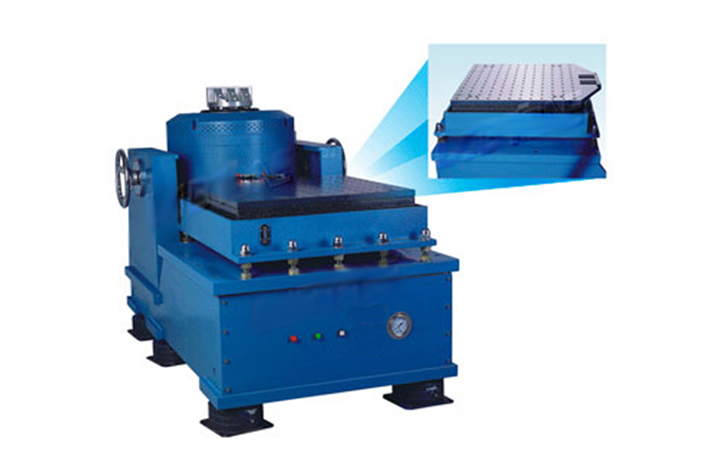

The oil film slide platform is made up of a natural granite and a sliding table of magnesium alloy material between the oil film and the oil film. It is also a linear guide device or a linear guide device for the static pressure bearing. And the driving head of the casting is provided for the user..

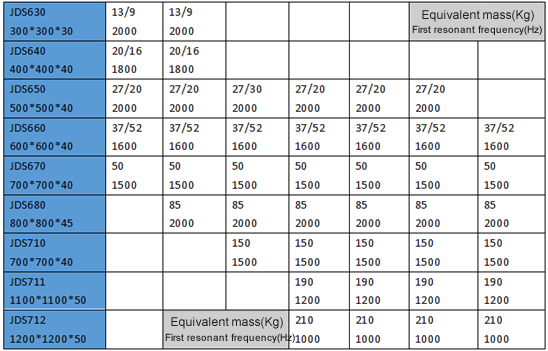

Specification table：
