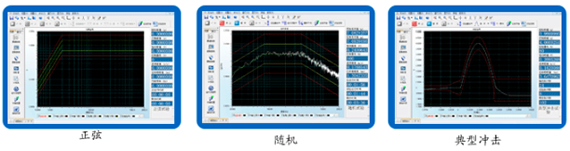

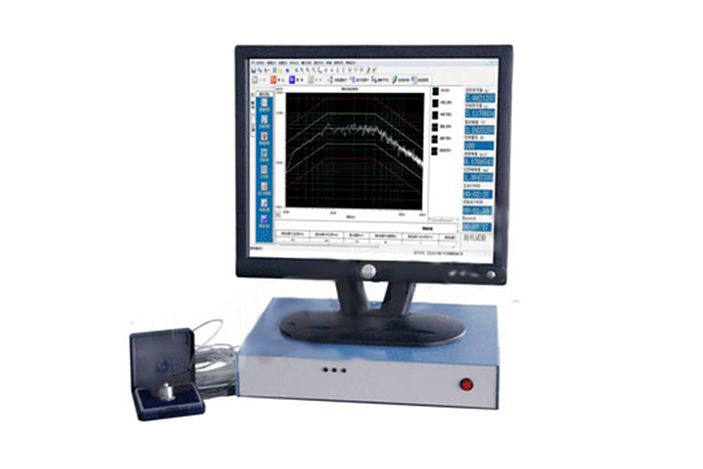

The vibration controller has a full range of vibration test function, can realize random, sine sweep, resonant, shock, and the presence of typical search sine on random, random random, in broadband random under narrow-band random sine, shock response spectrum control, transient simulation, simulation of road spectrum vibration test in electric or hydraulic vibration table on. The control software runs on Windows 2000/XP, which has friendly interface and convenient operation. At the same time, the system also provides perfect functions such as test process management, data indication and test report generation, which makes the test more convenient and reliable.

The vibration control instrument adopts the modular design and the distributed data processing scheme, which is very easy to expand the channel and test function. 32 bit high-speed dual DSP processing structure, low noise circuit design technology, 24 bit A/D and D/A hardware, high-speed USB2.0 data communication circuit. The adaptive control algorithm's control software is powerful, and improves the technical performance of the vibration control system to a new level.

System characteristics：

The control precision is high and the dynamic range is wide.

The control performance is perfect, and it has a full range of standard test functions.

Multiple safety protection, effective protection of shaking table and power amplifier and other test equipment;

The ICP constant current source and the charge amplifier are built in. The voltage and charge output vibration sensors can be directly connected to the system.

Small scale signal inspection system control loop performance, test system transfer function;

The WORD test report is generated automatically or manually, and the user can customize the content of the report.

The remote operation, such as starting, pause, shutdown and continuing, can be realized.

AC single end, AC double end, DC single end, DC double end;

The USB2.0 communication interface is connected to the PC machine, which is convenient and quick, that is, plug and play.

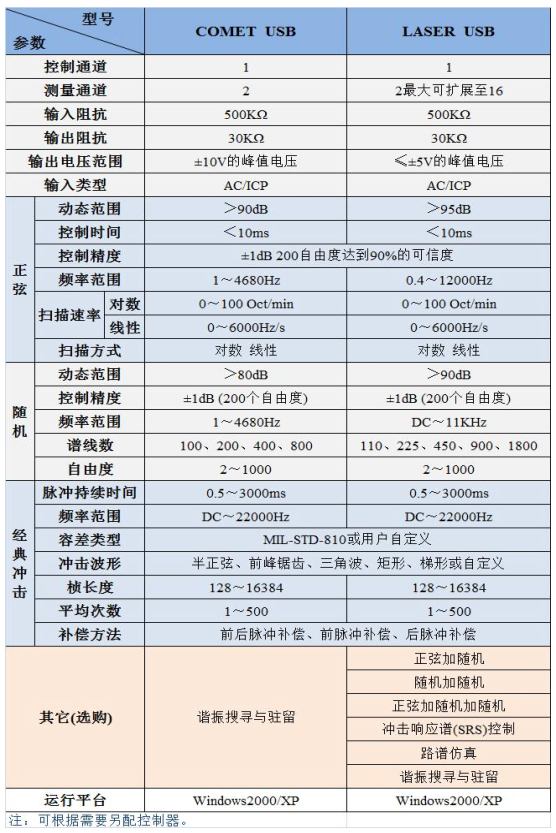

Technical parameter：
