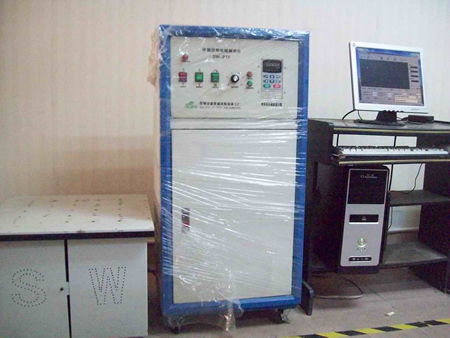

JDSS-400M-A Computer controlled sine vibrating table

Special computer controlled shaking table for electronic and electrical hardware products: vertical + horizontal electromagnetic vibrator (X, Y+Z axis) can be fixed and constant amplitude sweep frequency

The vibration table has the following functions than the ordinary vibrating table: the A acceleration is adjustable. B's powerful logarithmic sweep frequency function (the fundamental theoretical basis for the vibration test of electronic appliances. Otherwise, the vibration detection of electronic products is meaningless. Only logarithmic sweep frequency can search for the fragile damage frequency of electronic products, that is, the resonance point of electronic products. Ordinary frequency sweep can not reach the purpose of real vibration detection. C free warranty for 1 years, excellent quality. There are 3 unconditional changes in a year.

Computer monitoring: acceleration, amplitude modulation, frequency modulation and frequency sweeping integrated vibration test machine.

Break the tradition: manually convert x, y, z direction or replace the table. New breakthrough in the field of vibration

A, full automatic six degree space vibration: can automatically switch the direction of vibration (x, y, Z three-dimensional direction), can be given time. Automatic switching vibratory side without manual switching

B, the vibration direction of the fully automatic six degree space machine vibrating table (about the same desk working on the same front and back)

C, three axis simultaneous action, can be two axis simultaneous action, (two / three) axis continuous action, random vibration, sine wave (half wave / full wave).

D, the vertical level (x, y +, z). A vibration platform without moving the test sample

1., the functions are complete and powerful: fixed frequency, sweep frequency, logarithmic sweep frequency, multistage random, sine wave and half sine wave, programmable, frequency doubling, maximum acceleration, amplitude modulation, time control, fixed acceleration and fixed amplitude.

2. shaker size: L*H*W580 x 600 x 540

3. maximum test load: M series 150KG

4. FM function: any frequency within the frequency range, the maximum amplitude "20MM) (1-400HZ) (1-2000HZ)

5. sweep frequency function: (up frequency / down frequency / time range), it can set any real standard sweep frequency (1-400HZ) (1-2000HZ), set the acceleration sweep frequency and set the amplitude sweep frequency.

6. programmable function: 15 segments can be set at random (frequency / time) and can be circulated (irregular vibration).

7. frequency doubling function: the 15 segment multiplier increases (1) low to high frequency (2) high to low frequency (3) low to high to low / recyclable

8. logarithmic functions: (1) down to up frequency (2), down to down frequency (3), up and down to down frequency - 3 mode logarithmic / cyclable accelerable sweep frequency, and amplitude sweep frequency can be fixed.

9. vibrator power: 4.5KW

10. amplitude: 0-20mm (0-35mm) (adjustable range P-P) unit mm

11. maximum acceleration: 30G (40G)

12. has the function of overvoltage, overcurrent, overload, over displacement, low voltage and overheating.

Time control: any time can be set (in seconds)
