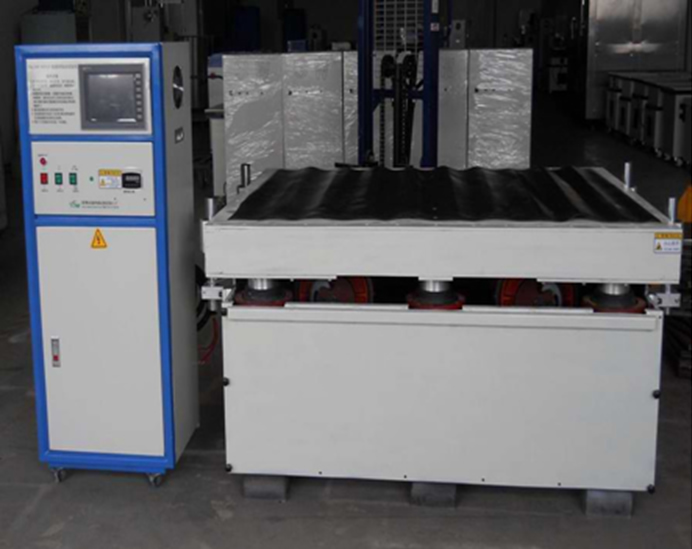

Touch screen control vibrator JDSS - 400TFA-200 (X, Y, Z 3D four degree automatic conversion)
Model：JDSS-400TFA-200
Product introduction：
This vibration testing machine is suitable for vibration test of vehicle battery, lithium battery and LED lamp. It can detect whether electronic, electrical products have false welding, screw loosening, loose structure and anti vibration performance.
Product introduction：
The vibration table has the following functions than the ordinary vibrating table: the A acceleration is adjustable. B's powerful logarithmic sweep frequency function (the fundamental theoretical basis for the vibration test of electronic appliances. Otherwise, the vibration detection of electronic products is meaningless. Only logarithmic sweep frequency can search for the fragile damage frequency of electronic products, that is, the resonance point of electronic products. Ordinary scavenging can not reach the purpose of real vibration detection.
C:It is mainly used to detect whether the electronic appliances have false welding, the structure is loose, and the screw is loose.
The touch screen monitors the acceleration, amplitude modulation, the frequency sweep can determine the acceleration and the amplitude, the integrated vibration testing machine.
Break the tradition: manually convert x, y, z direction or replace the table. New breakthrough in the field of vibration
A, full automatic six degree space vibration: can automatically switch the direction of vibration (x, y, Z three-dimensional direction), can be given time. Automatic switching vibratory side without manual switching

B, the vibration direction of the fully automatic six degree space machine vibrating table (about the same desk working on the same front and back)

C, three axis simultaneous action, can be two axis simultaneous action, (two / three) axis continuous action, random vibration, sine wave (half wave / full wave).

D, the vertical level (x, y +, z). A vibration platform without moving the test sample

1., the functions are complete and powerful: fixed frequency, sweep frequency, logarithmic sweep frequency, multistage random, sine wave and half sine wave, programmable, frequency doubling, acceleration adjustable, amplitude modulation, time control, fixed acceleration and fixed amplitude.

2. shaker size: L*H*W1560×410×1210

3. maximum test load: 500KG

4. FM function: any frequency within the frequency range, the maximum amplitude "12MM" (5-200HZ)

5. sweep frequency function: (upper frequency / lower frequency / time range) can set true standard back and forth sweep frequency (5-200HZ) can be fixed acceleration sweep frequency, can be fixed amplitude sweep frequency.

6. programmable function: 15 segments can be set at random (frequency / time) and can be circulated (irregular vibration).

7. frequency doubling function: the 15 segment multiplier increases (1) low to high frequency (2) high to low frequency (3) low to high to low / recyclable

8. logarithmic functions: (1) down to up frequency (2), down to down frequency (3), up and down to down frequency - 3 mode logarithmic / cyclable accelerable sweep frequency, and amplitude sweep frequency can be fixed.

9. vibrator power: 5.5KW

10. amplitude: 0-12mm (adjustable range P-P) unit mm

11. maximum acceleration: 45G

12. time control: at any time, the direction of vibration can be set (in seconds): vertical + level, vibration time in the direction of vibration: can be predetermined, automatic conversion

13. source voltage: 380 + 20%V

14. maximum current: 25A

15. precision: frequency can be displayed 0.01Hz, precision 0.1Hz

16. the touch screen operation is simple and clear, the vibration parameters are displayed in real time: vibration waveform / acceleration, amplitude, frequency, time, cycle times, scanning rate OCT/Min

17. acceleration, amplitude, frequency, scanning rate OCT/Min. time. The cycle times can be adjusted and displayed intuitively. The fixed acceleration can also be fixed.

18. starting, stopping, vibration direction and time determination, all touch screen operation

19. can print detection report: vibration wave, acceleration, amplitude, frequency, time, cycle times. Scanning rate OCT/Min.-- can use U disk to absorb vibration test report, send mail

20. contains 1 vibrator. The power amplifier cabinet is 1.

21. can be saved. And compile test product, module name and vibration test technical parameter 1000

22. can perform two sections of continuous frequency sweep with cross frequency, which can determine acceleration frequency and amplitude sweep.

Characteristic：
※ Beautiful appearance design

※ The mobile convenience, without a solid foundation.

※ I am easy to program and amplitude prediction.

※ The vibration parameters of real-time display (computer monitor).

※ The Chinese operation interface, convenient operation.

※ The stepless adjusting amplitude, to meet the requirements of more tests.

※ The closed loop control method, high precision

※ The surface vibration uniformity is good.

※ The non contact mechanical vibration, low noise.

※ The X, y, Z three axis vibration: the same table, without moving the test sample

※ The vibration direction of the automatic transformation.

※ We have over voltage, over current, over load, displacement, low voltage, overheating automatic protection function
