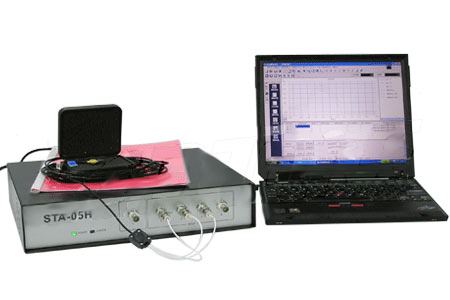

Impact measurement analyzer is a special platform for capturing and analyzing shock wave, which is suitable for capturing, measuring and analyzing shock events under general impact and high impact environment. It can meet the standard of ISO, GJB150, GJB360, GB2423, MIL-STD-810 and so on. It is a professional tool for environmental testing and measurement analysis.

System characteristics

* support GB, ISO, MIL-STD-810 and user-defined standards;

* waveform type: half sine wave, rectangular wave, trapezoid wave, triangle wave, forward saw tooth wave and post peak sawtooth wave;

* sampling frequency: the highest sampling frequency per channel of ST-02 is 192KHz, and the highest sampling frequency for ST-05 per channel is 1MHz;

* the acceleration range is up to 100000gn;

* error band analysis and Pass/Fail judgment;

* multiple impact waveforms are recorded and replayed;

* impact response spectrum (SRS) analysis;

* automatically generate Word test report, the content of the report and the template can be customized;

* portable design, USB2.0 interface.

application area

* impact / drop / collision test;

* the transient capture and shock response spectrum analysis of the shock wave;

* capture and analysis of the blast wave.

* impact test control
