JDSS30series of pneumatic horizontal impact test systems - the production of Shengshi Wei factory in Shenzhen City, the impact test of the product in the horizontal direction is carried out. The simulation of the impact environment, such as the incapable optoelectronic system, the horizontal emission test of a slender product, and so on.
Functions and characteristics
The impact worktable has a longitudinal impact, which has a high stiffness in the longitudinal direction, and the high frequency clutter is small.
The reliable pneumatic brake technology prevents the two rebound of the worktable.
All use low pressure cylinder as power, safe and reliable, easy to maintain.
A gas-liquid buffer is designed for a large scale impact platform, which greatly reduces the impact force on the base and the ground, and improves the service life of the equipment.
The expansion cylinder is used as the power, and the impact overload value is controlled by adjusting the pressure, which is quick and convenient, and the impact repeatability is good.

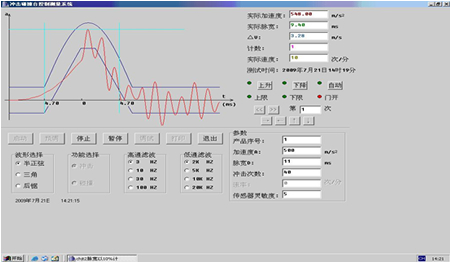

The integration of the control and measurement of the impact table is convenient for operation and measurement.

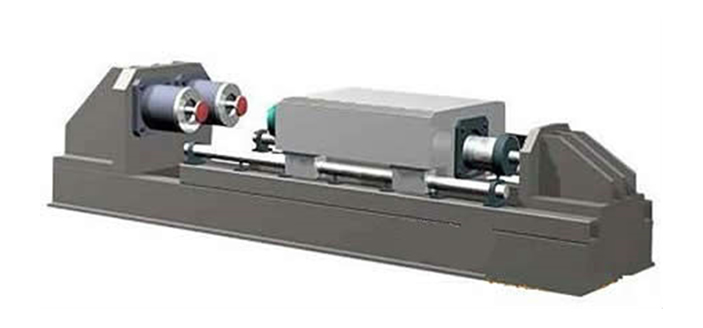

SW30 Series pneumatic horizontal impact test rig
Model JDSS30－50 JDSS30－100 JDSS30－200 JDSS30－400 JDSS30－600 JDSS30－1000 Rated load（kg） 50 100 200 400 600 1000 Platform size（mm） 600×320 700×400 900×500 900×500 1000×580 1200×680 Shock wave Half sine wave Post peak sawtooth Trapezoid Half sine wave Post peak sawtooth Trapezoid Half sine wave Post peak sawtooth 梯形 Half sine wave Post peak sawtooth Trapezoid Half sine wave Post peak sawtooth Trapezoid Half sine wave Post peak sawtooth Trapezoid Peak acceleration（m/s2） 100～6000 100～2000 150～1000 100～3000 100～1000 150～1000 100～3000 100～1000 150～1000 100～3000 100～500 150～500 150～2000 100～500 150～500 150～1000 100～500 150～500 Pulse duration（ms） 60～0.5 18～3 18～6 60～0.5 16～6 16～6 60～2 18～6 18～6 60～2 18～6 18～6 60～3 18～6 18～6 60～6 18～6 18～6 Base size（mm） 2200×630 2200×660 2650×720 2650×720 3200×860 4200×960 Body weight（kg） 1500 1800 2200 2200 3100 4500 Supply voltage Three-phase 380V，50/60Hz Standard of use GJB150 GJB360 GJB548 GB/T2423 GJB1217 JJG497 MIL-STD-810F IEC68-2-27
