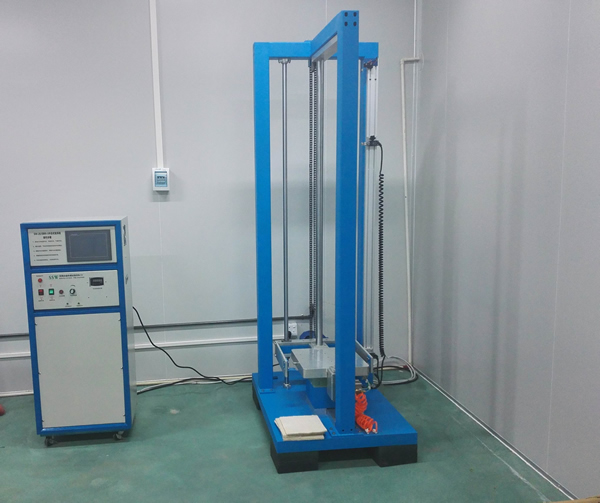

JDSS-30 high acceleration impact test rig, our company developed the manufacturing of advanced design, reliable work, convenient operation, reasonable price, is the specimen in the impact assessment, reliability and structure of the function and performance of the end equipment of the environmental testing integrity.
The impact table can meet the second parts of the international environmental test for GB/2423.5-1995 electrical and electronic products: Test methods, test Ea and guidelines: requirements for impact.
Main technical indicators：
Product model JDSS-30+350X350 Maximum load 30kg Maximum impact height 1500mm Platform size 350mm×350mm The tolerance of the impulse wave and the corresponding
velocity changes conforms to the requirements of (GB2423) and the JB/T6868-93.Impact acceleration range 49～82000m/s2 Pulse duration 0.5～21ms Shock wave This device is provided with a half sine wave Continuous working time 8 hours The impact of table size 750×600×2200(mm) The impact of body weight 375kg Working conditions Supply voltage 220V±10% AC50Hz Ambient temperature 10℃-30℃ Relative humidity ≤90%（25℃） Surrounding environment No corrosive medium, dry ventilation, no influence on electromagnetic
interference and strong vibration source of normal work.
