Product details:

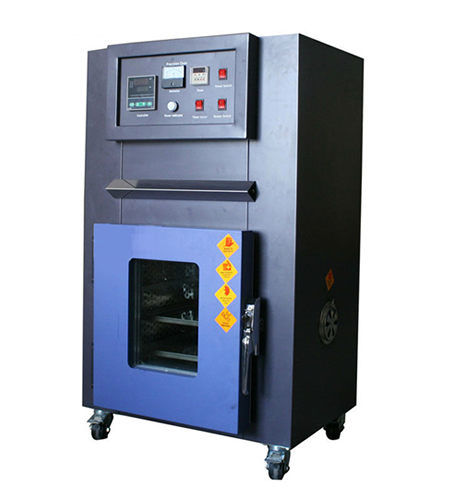

The aging test box is widely used in the field of power electronics, computer, communication, bio pharmaceutical products aging test for high performance electronics simulation to a high temperature, harsh environment testing equipment, experimental equipment is very important to improve the stability and reliability of the product is the production of enterprises to improve product quality and competitive production process the.
Custom service: customizable according to customer needs
1. Product characteristics:
1. the temperature control is accurate and the precision is high. Because of the unique design of the air duct system and the electronic control system, it can keep the temperature of the whole room high even, which is much higher than that of the same kind.
Room 2. set a wide range of temperature, continuous adjustable. At room temperature +5 C --60 C (normal temperature +5 --85 C) within the range can be set arbitrarily. If the customer is specially required, the product can be designed for higher temperature.
3. system protection function is complete, can ensure the long-term stability of safety without fault operation.
4., the structural design of the laboratory is advanced and reasonable, and the supporting products and functional components have advanced level of leading counterparts, which can adapt to long-term, stable, safe and reliable production needs. It can satisfy users' processing and production requirements for the above purposes, and has the advantages of convenient operation, operation and maintenance, long service life, beautiful appearance and good user interface, which makes users operate and monitor more simply and intuitively.
5. the main components of the equipment are selected by the famous brand manufacturers at home and abroad to ensure the quality and performance of the whole machine.
2. Specification parameter：
Inner box size W×H×D(mm)
Non - standard, customized according to customer needs
Outer box size W×H×D(mm)
Temperature range
0℃, -20℃, -40℃, -60℃～+70℃, +80℃
Performance
Temperature fluctuation
±0.3℃
Temperature uniformity
±2℃
Precision of temperature analysis
0.1℃
Heating time
20℃～80℃≤50min
Texture of material
Outer box material
Stainless steel plate + lacquer
Inner box material
SUS#304 Stainless steel plate
Heat insulation material
PU Glass wool
System
Wind circulation system
Cooling fan
Heating system
SUS# Stainless steel high speed heater
Humidification system
Surface evaporation system
Refrigeration system
Imported Taikang compressor + fin evaporator + air cooled (water cooled) condenser
Dehumidification system
ADP critical dew point cooling / dehumidification method
Control system
Digital electronic indicator+SSR+PID
Enclosure
Vacuum glass observation window, electric test hole (50mm), control state indicator lamp, indoor lamp, partition frame (2 free adjustment)
Safety device
Overheating protection circuit breaker, compressor overload protection, control system overload protection, humidifying system overheating protection, overload indicator lamp
Power Supply
AC 3Ψ380V 60/50Hz
Custom service
Non standard special requirements, customizable
3. Implementation standards and test methods：
1.GB11158 Technical conditions for high temperature test box
2.GB/T2423.2-2001 Test method for high temperature test box
3.GB/T2423.22-2001Thermometer test party4.IEC60068-2-2.1974 Test method for high temperature test box
5.GJB150.3 High temperature test
