Model: JDSS-9100-CI

Brand: JDSS/ Jindingsaisi

Product use:

The machine is widely used. The replacement of different fixtures can be used to test all kinds of materials and sole, tires, rubber tubes, triangle tape, plastic cloth, plastic sheet, and packaging.

Tensile strength, elongation, tear, adhesive force and tensile stress of finished products, semi-finished products, or dumbbell shaped specimens of film, acrylic, FRP, ABS, EVA, PV, etc.

Peeling, shear, rubber and metal adhesive.

According to the standard: the design of this instrument meets the standard requirements of ISO/ASTM/GB/JIS/EN and so on.

Product parameters:

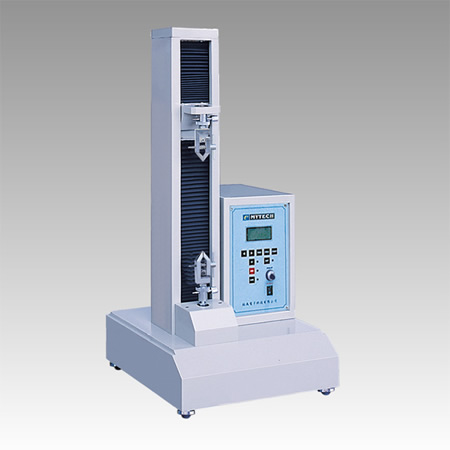

Name: microcomputer system pull test machine

Capacity range: 10,20,50100200kg

Unit switching: G, kg, LB, N

Decomposition degree of load: 1/10000

Load precision: 1%

Maximum stroke: 300mm

Displacement decomposition degree: 0.01mm

Data sampling frequency: 10HZ

Test speed: 5-200 or 25-500mm/min can be set

Display device: LCD liquid crystal display

Motor: variable frequency motor

Power: 220V, 5A
