Model: JDSS-50/S/M

Brand: JDSS/ Jindingsaisi

Product use:

The machine is widely used. The replacement of different fixtures can be used to test all kinds of materials and sole, tires, rubber tubes, triangle tape, plastic cloth, plastic sheet, and packaging.

Tensile strength, elongation, tear, adhesive force and tensile stress of finished products, semi-finished products, or dumbbell shaped specimens of film, acrylic, FRP, ABS, EVA, PV, etc.

Peeling, shear, rubber and metal adhesive.

According to the standard: the design of this instrument meets the standard requirements of ISO/ASTM/GB/JIS/EN and so on.

Product parameters:

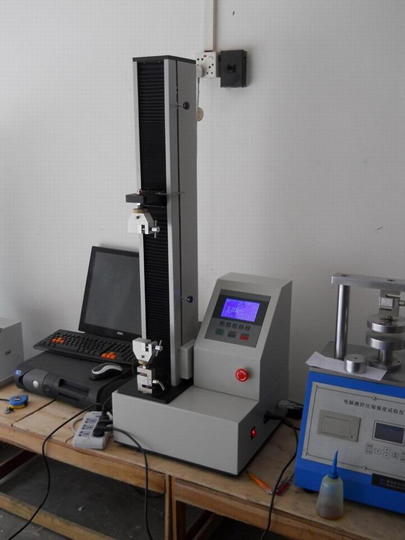

Name: computer system pull test machine

Capacity range: 50 kg

Unit switching: kg, LB, N, kN

Displacement decomposition degree: 0.001mm

Speed precision: + 1%

Effective width: 40/410mm

Data sampling frequency: 200HZ

Maximum stroke: 550/560mm

Test speed: 1-500 mm/min can be set

Display device: computer system test software

Motor: step motor

Power: 220V, 15A
