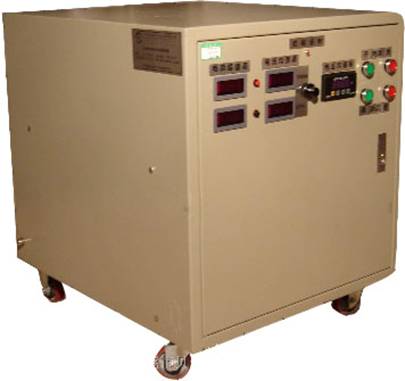

Battery short circuit tester / short circuit tester / large current short circuit, equipment professional production high and new enterprise certification

Conform to standard: UL2054, UL1642\ GB 18287, GB 18288\ IEC 62133 \ EN 62133\ UN38.3 and other common standards

Device name: Battery large current remote circuit

Test items: forced external short-circuit at normal temperature, forced external short circuit at 55 C, forced discharge

Product model: JDSS-1000A

Performance parameters:

Whole machine size: 600 x 700 x 700 (mm)

Working voltage: AC 220V 50Hz-60Hz;

Impact voltage: AC 1kv/1.2-50 s (peak) 1min

DC response time: less than or equal to 5 mu s

Maximum short circuit current: 1000A maximum allowed through the current 4le, 5seconds

Resistance device: less than 100m.

Remote control distance: no solid barrier 7M

Operating time: pick-up time / release time more than 30ms

Operation characteristics: cold pull in voltage more than 66%Us, the cold can release voltage 30%Us, less than 5%Us

Mechanical life: 300 thousand times

Electrical life: resistive load 50 thousand times, inductive load: resistive load 60%le, 20 thousand times

Working environment: temperature -10 C ~100 C humidity 10~90% without condensation
