- Details
Product introduction

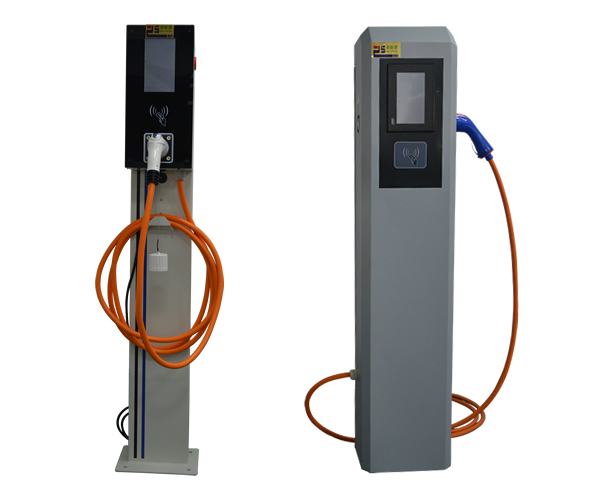

The vertical AC charging pile is simple in layout and small in beauty. It only needs to connect to the distribution line, so the electric vehicle can be recharged. It has LED display, charging, stopping and fault indicating lights. It has keyboard operation settings, magnetic card intelligent recognition, APP query and control functions, and can be connected with any charging management background and protocol standard.
Product features
* Radio frequency IC card, which can identify user information, calculate charge cost and record consumption data in the background
* Embedded operating system MCU;
* Installation of leakage protection switch, emergency stop button;
* The shape of the sheet metal structure;
* Multiple communication modes: RS-485, CAN, Ethernet, wireless communication
* Four charging modes: automatic filling, timing, fixed fee, electrical measurement
Product performance parameter table
Model JDSS-EVAY-7KW-220V Installation method Floor type Shell material Sheet metal Protection grade IP54 Rated power 7KW Standby power <5W Input voltage 220VAC，Single-phase Output voltage 220VAC Display mode LCD screen, type: resistance screen /7 inch Networking mode WIFI，CAN Rechargeable gun Brand: domestic self selected new national standard, the number: 1, line length: 5 meters Warranty Maintenance of the whole machine for 1 years, life-long maintenance Software upgrading Field inserting U disk Software upgrade cost Free Admission Supplementary characteristics 1. You can choose 3G or 4G 2. A rechargeable gun can choose a 10 meter line
3. You can choose backstage management
4. Remote monitoring and upgrading can be selected
5. The reserved power can be selected
6. You can choose
Appearance size 1400*300*200mm Car suitable for charging BYD, Tengshi, SAIC, Jianghuai, Beiqi, Beiqi Futian, Changan, land ark, Jiangling, Jin Lu and other car companies are pure electric or mixed logistics vehicles, taxis, passenger cars, private cars, and city sanitation vehicles. (*Product specifications can be customized according to customer needs）
Applicable scene
It is suitable for installing any indoor or outdoor space in underground garage, office building, shopping mall, hotel, road shoulder, public parking and so on, and has the design of heat protection, waterproof, lightning protection, dust-proof and so on.
