- Details
Product introduction

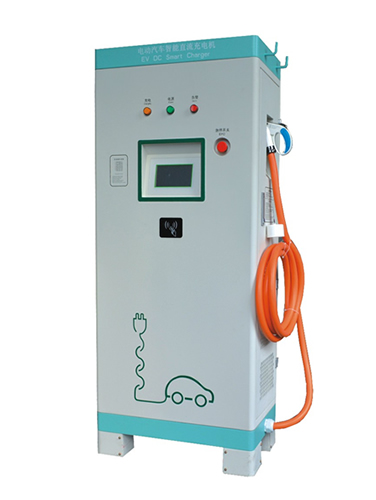

The individual DC charging pile is a safe and reliable DC power supply for the vehicle motor. Basic components: charger and central controller, display, reader, charging gun and other device components are located in a standard cabinet, which is compact and suitable for small space.
Product features
* Radio frequency IC card, which can identify user information, calculate charge cost and record consumption data in the background
* Input 380V voltage, three phase electronic watt hour meter
* Modular machine;
* Installation of leakage protection switch, rush button;
* The shape of the sheet metal structure;
* A variety of communication modes: RS-485, CAN, Ethernet, wireless communication
* Four charging modes: automatic filling, timing, fixed fee, electrical measurement
Product performance parameter table
Model JDSS-EVDY-30KW-750V Installation method Floor type Shell material Sheet metal Protection grade IP54 Rated power 30KW Standby power <5W Input voltage 380VAC，Three phase five wire Output voltage 200-750VDC Display mode LCD screen, type: resistance screen /7 inch Networking mode WIFI，CAN Rechargeable gun Brand: domestic self selected new national standard, the number: 1, line length: 5 meters Warranty Maintenance of the whole machine for 1 years, life-long maintenance Software upgrading Field inserting U disk Software upgrade cost Free Admission Supplementary characteristics 1. You can choose 3G or 4G 2. A rechargeable gun can choose a 10 meter line
3. You can choose backstage management
4. Remote monitoring and upgrading can be selected
5. You can choose
Appearance size 380*700*1920mm Car suitable for charging BYD, Teng potential, Yutong, Jinlong, Hagrid, An Kai, Zhongche, Tong, SAIC, JAC, Beiqi Foton, Changan, Yaxing, land ark, Yinlong, Shangrao bus, Jiang Ling, golden dragon car prices electric or hybrid buses, car rental, logistics vehicles, passenger cars (private cars), city sanitation vehicles, tour bus (*Product specifications can be customized according to customer needs）
Applicable scene
One type of DC charging pile is suitable for City special charging station (bus, taxi, car logistics etc.), city public charging stations (private cars, commuter cars, buses and other vehicles), intercity highway charging stations need fast charging occasions, especially suitable for space constrained rapid construction pile.
