Product characteristics
* Meet the national standard requirements, single configuration;The charger can automatically charge the vehicle with constant current and constant pressure according to the requirements of BMS.
* A series of complete safety measures, such as leakage detection, surge resistance, lightning protection, insulation detection, etc.
* Take full consideration of the application scene, increase the shock absorption and strengthen the strong design for the connections and power nodes, and have the ability of shock proof and anti slanting.
* Small volume, easy to use, easy to install and maintain.
Product introduction

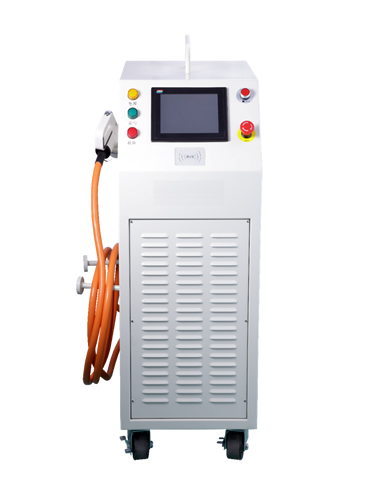

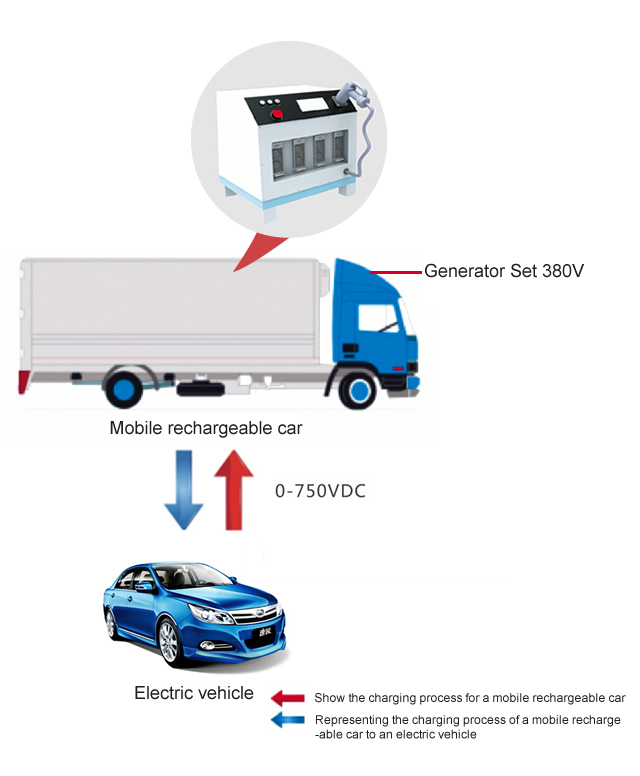

Vehicle mobile charging pile is suitable for new energy vehicle 4S shop, vehicle factory commissioning area, new energy vehicle, road rescue and other frequently changing charging sites or temporary electricity supplement occasions. Basic composition: including charging module, power supply interface, charging interface, protection module, control module, monitoring unit, man-machine interface and cabinet, etc.
Product parameters
Model JDSS-EVDY-6015B JDSS-EVDY-6030B JDSS-EVDY-6045B Rated power 15KW 30KW 45KW Peak power 18KW 36KW 54KW Making way ZVS,PWM Input Phase number 3Phase, 3Wires ,PE Voltage 380VAC（-15%+20%） Frequency 45Hz-65Hz Power factor ≥0.99 APFC Total harmonic current ≤3% Output Voltage 0-750V DC Electric current 0-20A 0-40A 0-60A Stabilized voltage precision ≤±0.5%FS（FS Resistor Load） Stabilized current precision ≤±0.5%FS（FS Resistor Load） Ripple ≤0.2% Power adjustment rate ≤±0.1%FS Protection grade IP54 Efficiency 96% Protect 1、Input / undervoltage protection；2、Output overcurrent / short circuit protection； 3、Protection measures such as anti overheating, overheating, lightning protection, communication interruption, moistureproof, salt fog prevention, mildew proof change, antirust protection and so on Module communication interface CAN 2.0 Controller communication interface CAN/RS485/RS232 Cooling mode Forced cooling of fan Environment Operating environment -20+50℃ Temperature 10-90%RH Storage temperature -30℃ +70℃ Weight(Kg) 50Kg 70Kg 90Kg Size 400mm W×1000mm H×650 mm D (*Product specifications can be customized according to customer needs）
