Product Profile

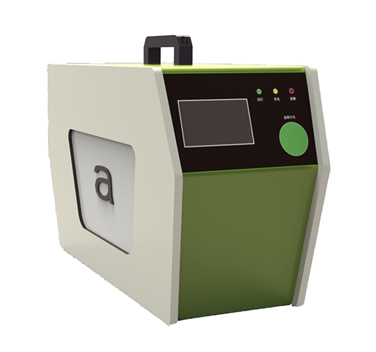

Single phase mobile DC charging pile is suitable for families, communities, public places and so on. It has no three-phase power collection, and is suitable for vehicles with or only DC charging interface. It is easy to move and connect conveniently. It can pick up electricity from common market electricity, that is to say, use one time to start, complete or recharge, stop and respond quickly, and adopt pluggable module, which has the characteristics of high integration, small volume, light weight and easy to carry. It meets all kinds of occasions' needs.
Product introduction
The ultra strong input voltage range is up to AC220V + 20%, and the full range DC output voltage of DC200-750V is prepared. The output of current and voltage can be adjusted to meet the charge requirements of different types of batteries.
Using the leading DSP technology, the powerful operation and control function make the whole system intelligent and efficient operation.
The intelligent air cooling system, which challenges the strict devices to make up the ultra long life of the charging system;
It has many functions such as AC input, over / under voltage protection, over temperature protection, DC output over / under voltage, over current / short circuit protection, output reverse protection, hot plug maintenance and other functions.
Basic parameters
AC input voltage AC220V±20% L+N+PE AC input frequency 45～65Hz DC output voltage DC200～700V Stabilized voltage precision ≤±0.5% Stabilized current precision ≤±1.0% Ripple coefficient ≤±0.5% Power factor ≥0.99 Efficiency ≥96% Charging interface Single gun Communication interface CAN/RS485/Ethernet GPRS wireless network interface optional Working environment temperature -20℃～+50℃ Size 200×450×518（Wide x deep x high） Electrical specifications
Input characteristics Input mode Single phase input Input voltage range 90Vac to 265Vac Rated input voltage 110Vac / 220Vac Nominal input 100Vac to 240Vac Frequency range 45Hz-65Hz Maximum input current 19.5A±10%@176Vac Surge current Standard of satisfaction：ETSI300132-3 Efficiency ≥94%@220Vac 100% Load Power factor ≥0.98@220Vac100% Load Rated power 2800W(176Vac～265Vac)，1200W(90Vac～175Vac) Insure insurance L Online insurance pipe 30A Maximum input voltage 320Vac(Power supply cannot be damaged) Output characteristic Output voltage and current adjustment rate
Output voltage +400Vdc Output voltage setting value +400±4Vdc Adjustable range of output voltage +200Vdc～+450Vdc Output undervoltage alarm point 150V±10V Balance of flow（176Vac～264Vac，50%～100% Within the load range） ≤±5% Source effect ±0.1% Load effect ±0.5% Stabilized voltage precision ±0.6% Minimum current 0A Rated current 7A Peak current 7.5A Temperature coefficient
（1/℃）≤±0.02% Rated power 2800W(176Vac～265Vac)，1200W(90Vac～150Vac)
